SEWO Smart Parking System with 13.56MHZ RFID 125KHZ RFID and AC220V±10V 50Hz Parking Management System

Name: SEWO Smart Parking System with 1356MHZ RFID 125KHZ RFID and AC220V10V 50Hz Parking Management System
Brand: SEWO
Price: 1 USD

Cheap SEWO Smart Parking System with 13.56MHZ RFID 125KHZ RFID and AC220V±10V 50Hz Parking Management System for sale

Place of Origin : Guangdong, China

Brand Name : SEWO

Model Number : SEWO-X6

MOQ : 1

Dimension : 450*270*1370mm

Housing Material : steel & tempered glass

Working Temperature : -30°C to +70°C

Working Humidity : ≤95% non-condensing

Working Voltage : AC220V±10% 50Hz

Built-in Reader : IC/ID/Barcode

Communication Mode : RS485, TCP/IP

Transmission Distance : 1200m (RS485)

Display Type : LED display screen

Offline Operation : Supported

RFID Frequency : 13.56MHz, 125kHz

Waterproof Design : Yes

Dustproof Design : Yes

Rustproof Design : Yes

Housing Size : 455*300*1360 mm

Contact Now

SEWO Automatic RFID Parking Management System for Ticket Dispenser Scanning Card Parking Lot Entrance Exit

Why Choose Us

SEWO Smart Parking System with 13.56MHZ RFID 125KHZ RFID and AC220V±10V 50Hz Parking Management System

Our Featured Services

1, We have over 20 years of industry technical experience and possess multiple patents and testing reports. We can tailor our unique solutions to meet the needs of our customers. 2. We have an experienced R&D team to provide you with comprehensive services (including project proposal design, on-site rendering, 3D rendering, customization of colors, labels, etc.). Please contact us for more details. 3. Support small order customization: No matter how big or small your order is, we attach equal importance to it and provide high-quality services to accompany customers' growth.

So, contact us now and we will provide you with the most favorable price and high-quality service!

Products Description

Product Name	Ticket / Card Parking Management	Product No.	SEWO-X6
Housing size:	4553001360 mm	Housing Material	Steel & Tempered glass
Support Built-in Reader	RFID IC / ID Card , Ticket	Support	black-list and white-list
Display	LED display screen	Feature	Support offline running，etc

Advanced Features:

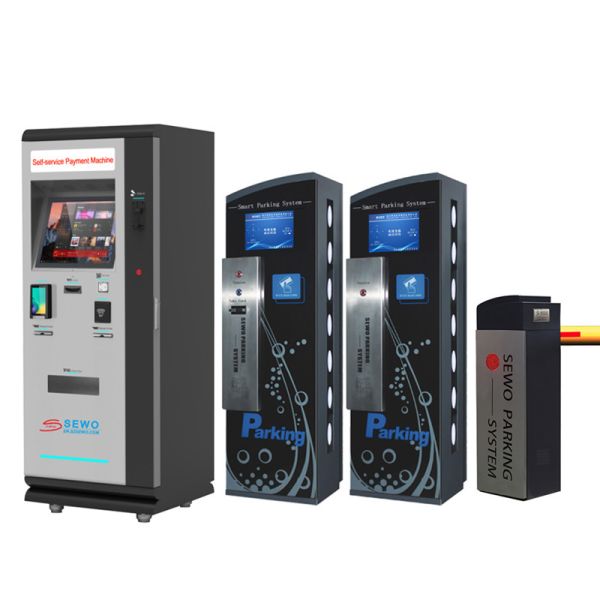

SEWO-X6 Series Car Parking System is a classical series car parking system solutions for managing pay-to-park facilities with high traffic flow, for both hourly and registered parkers. It is composed of Entry Station, Exit Station, Entry Barrier, Exit Barrier, manual-pay-station and software.This ticket parking system is ideal solution for parking lots of premises such as shopping mall, hotel, shopping center, exhibition center, hospitals, airports etc.

1). X6 Series smart parking management system is our first fully off-line system. Which means it can run without computer. Traditional parking management system should works with computer to achieve its complete functions. 2) X6 is designed for off-line situation to solve the problem of computer crash and make sure whole system run normally -- Multiple network modes to realize remote data and image transmission -- Easy to install. Debug and maintain. Testing function available -- Compatible with Long distance reader function.. Off-line working available -- 13.56MHZ. 125KHZ. Barcode. RFID. UHF available in one control board -- Automatic Card/ Barcode dispenser -- Housing iwth waterproof. Dustproof and rustproof design -- Flexible system configuration.extended to multi-level parking lot management system

What's the advantages of SEWO automatic car parking system ?

* Low-cost, completely wireless solution that replaces loop detectors and lead-in wires * Provides wireless presence indication (or traffic measurement parameters) directly into the Controller Cabinet * Reliable operation in all weather conditions * Flexible installation (number of lanes and location) * No scheduled maintenance required * Real-time secure wireless communication * Unparalleled local support

Common Project Solutions

SEWO Parking Management System Working Principle

How to Entry ? Step 1----- The Vehicle covers the 1th Loop coil. Step 2 ----- Driver press the push button on the entry parking case. Step 3 ----- The card dispenser spit an RFID Card. system recording all the information.like data.entry time. Step 4 ----- Boom barrier open automatically Step 5 ----- After driver pass the 2th loop coin. The Boom barrier close automatically

How to Pay and Exit ?

1st example of case： Manual Payment（Gatehouse near the exit barrier）

Step 1----- Vistor drive to the payment centre station and give his to the operator (Station near the Exit point ) Step 2----- Operator put the card in the card issue device Step 3----- System shows the card information on the LED display automatically. ( Including The card holder. How long the car stay inside the parking system. How much need to pay） Step 4----- After driver pay the cash. Operator click " open barrier ". then boom barrier open Step 5----- After the car pass the loop coil. the boom barrier close

2nd example of case: Central Payment（driver pay the money in the central parking lot）

Step 1----- Vistor drive to the central payment room and give the card to the cashier Step 2----- Cashier swipe the card on the card issuer device. then system show how long he stay inside the parking lot and how much need to pay Step 3----- After pay the money. Cashier give back the card to the driver Step 4----- Driver take the card to the exit machine and insert it to the card acceptor. then barrier open Step 5----- After the car pass the loop coil. the boom barrier close

3nd example of case: Driver pay the money to the autopayment machine

Step 1----- Vistor drive to the Auto-payment Station and place card on the reader Step 2----- The auto-payment machine show how long the car stay and how much need to pay automatically Step 3----- Vistor Insert the Coin or Notes to the bill acceptor then print out receiption Step 4----- After pay the money. Vistor take the card to the exit machine and insert the card to the acceptor. then barrier open automatically Step 5----- After the car pass the loop coil. the boom barrier close

Customized Services

The above solutions are for reference only. If you have related needs, feel free to contact us with your requirements. We will provide you with the most suitable solutions, competitive prices, and excellent service.

Customer Photos

Our Advantages

FAQ

1, What is the strength of your company in this industry? Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China. 2, What is the advantage products of your company? Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products. 3, How about the quality of your product? With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service. 4, How about some customization request? We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert. 5, How about the delivery time? Regular products need 5-10 working days. Actual delivery time according to your product request.
